OEM Customized Home Hifu - Apolo picosecond nd yag tattoo removal laser equipment – Apolo Detail:
Picosecond Nd:YAG laser Principle
Picosecond laser is being introduced as the first safe and effective aesthetic laser specifically designed to treat tattoos and pigmented lesions. This innovative laser delivers ultra short pulse bursts of energy to the skin in trillionths of a second. These pulse create a photomechamical effect, that target ink while avoiding unmarked tissue. The pulse shatters the ink into tiny, dust-like perticales which are easily eliminated by the body.

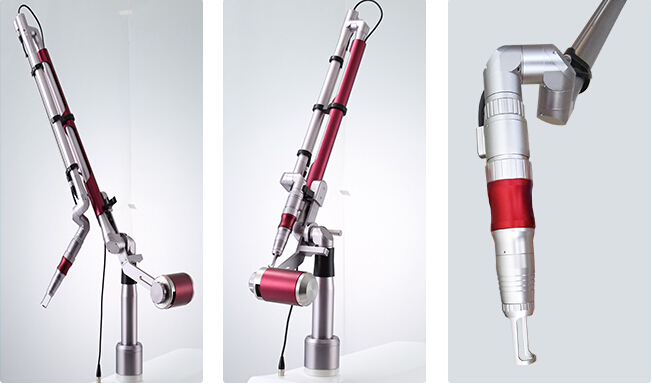

Imported 7 jointed articulated arm with adjustable spot size
Intelligent software created by Android operation system
Spot size from 1~10mm adjustable
Tattoo removal
Vascular lession removal
Skin rejuvenation
Skin refurfacing: Wrinkle reduction, acne scar reduction, skin toning
Epidermal and dermal pigmented lesions: Nevus of OTA, Sun damage, Melasma etc..

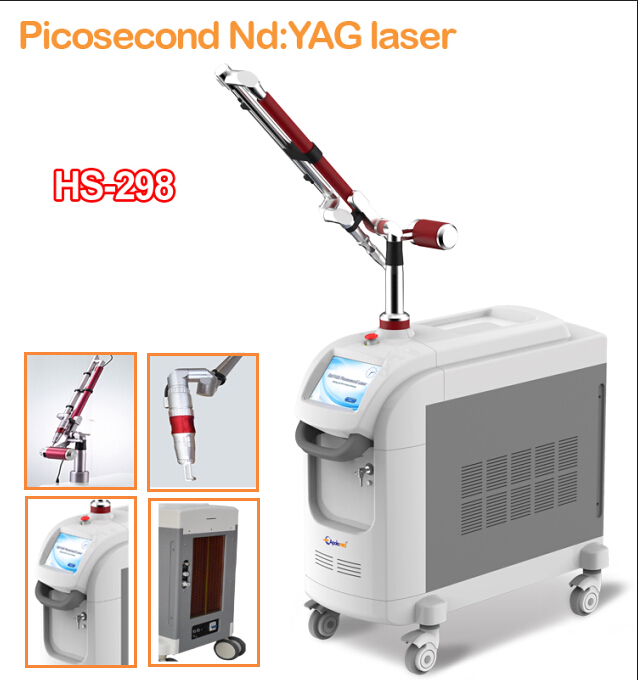

Picosecond Nd:YAG laser specifications
| Model Name | HS-298 |
| Laser Type | Picosecond Nd:YAG laser |
| Wavelength | 1064nm/532nm |
| Beam profile | Flat-top mode |
| Pulse width | 300ps |
| Pulse energy | 500mJ: 1064nm |
| 250mJ: 532nm | |
| Energy calibration | External & self-restoration |
| Spot size | 2~10mm |
| Repetition rate | Max.10HZ |
| Optical delivery | 7 jointed Articulated arm |
| Operate interface | 9.7" true color touch screen |
| Aiming beam | Diode 655nm(red), brightness adjustable |
| Cooling system | Advanced air & water cooling system |
| Power supply | AC100V or 230V, 50/60HZ |
| Dimension | 97*48*97cm (L*W*H) |
| Wright | 150kg |
Picosecond Nd:YAG laser applications

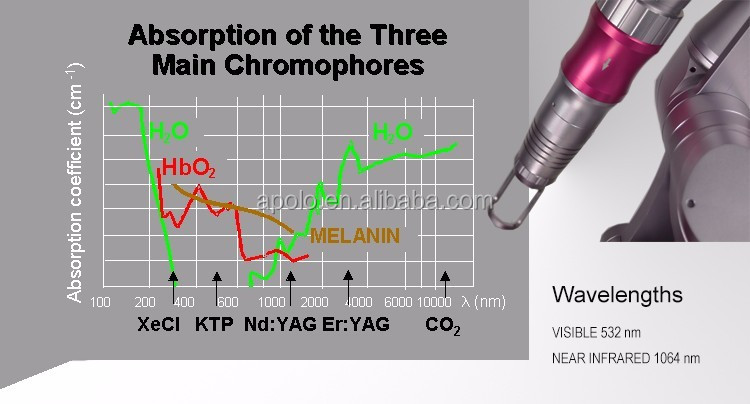

1.Two wavelengths (1064nm/532nm) with Non-Fractional and Fractional optional
2.Delivery high peak power and ultra short picosecond pulse duration, less iscomfort during treatment, safe and effective.
3.Short pulse duration - 300Ps greater variety of tattoo colors and skin types with minimal downtime.
4.Spot size adjustable from 1-10mm the energy density automatic conversion
5.Imported 7 jointed, 360° adjustable of articulated imported arm adjustable for easy operation
6.RF ID / IC management control design for providing different business operations models ( ie. member card, Rental.... )

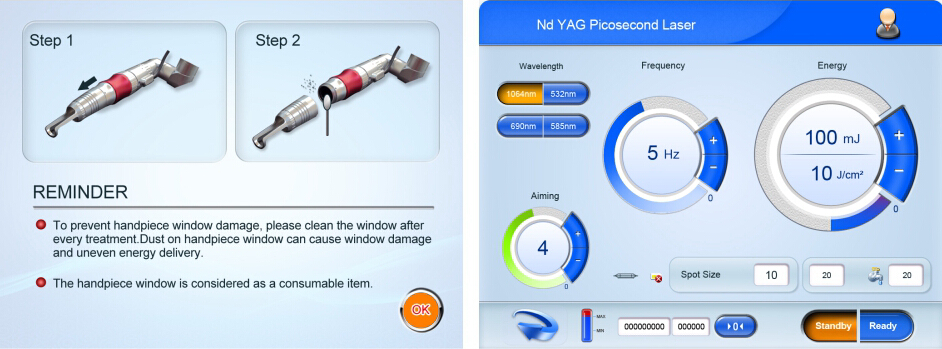

7.Apply Android operation system, is capable for more functions of saving customer database, developing applications and customize interface.
