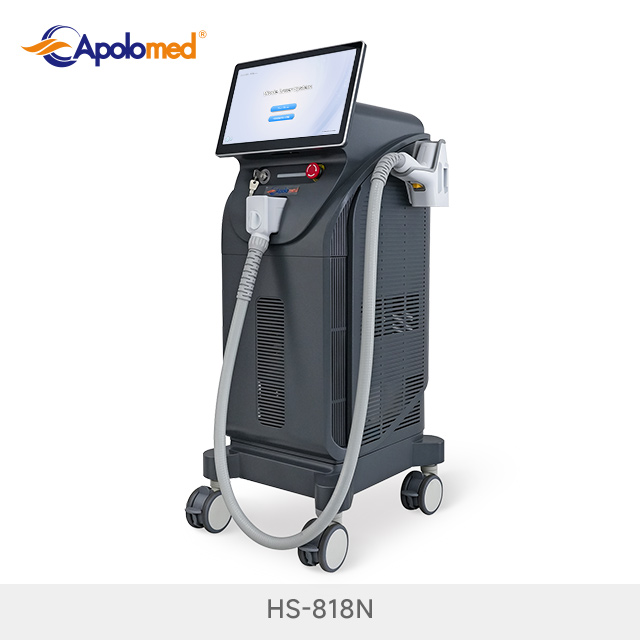

Portable Diode Laser with Medical CE
Triple-Wave Diode Laser
It combines 3 wavelength(755+810+1064nm) into a single handpiece, which simultaneously
target different depths of the hair follicle to achieve better efficacy and ensure the safest &
comprehensive hair removal treatment.

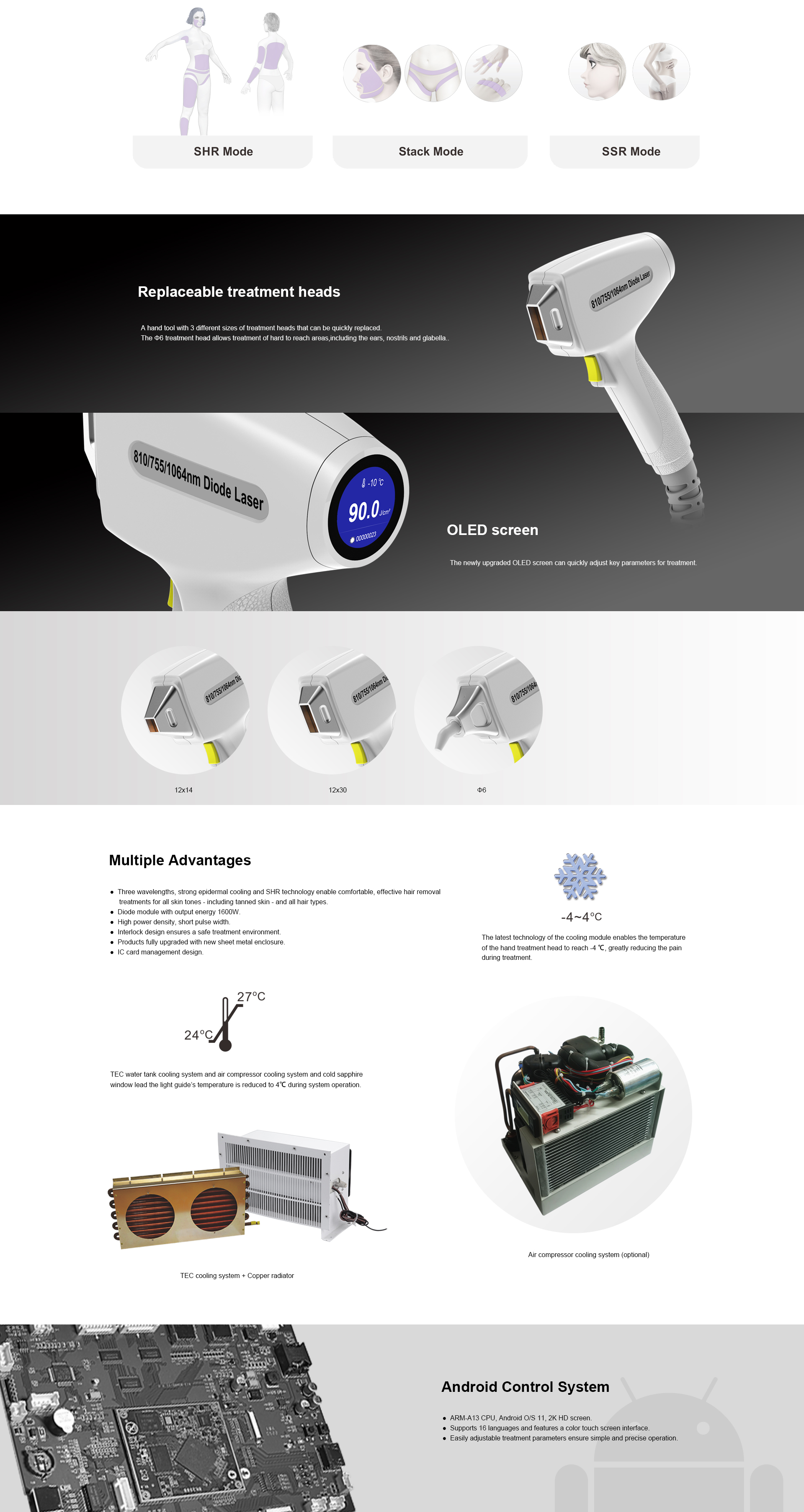

3 unique treatment modes for easy operation
SHR works by gradually heating the dermis to a temperature that effectively damages the hair follicles and prevents re-growth, while avoiding injury to the surrounding
tissue. Low energy pulses at a high repetition rate are delivered into the dermis, achieving high accumulated energy and reaching effective heat build-up for hair follicle
destruction, with virtually no pain.
Stack mode is especially designed for small areas hard to reach, like finger, toe, hairline, temple, bikini area, etc..
SSR Mode means “Super Skin Rejuvenation”, designed mainly for whole body skin rejuvenation and skin toning.
| Wavelength | 810nm/Dualwave(755+810nm)/Triplewave | ||||||
| Laser output | 1600W/1800W | 3000W | |||||
| Spot size | 12*14nm,
12*30mm |
Ф6mm,12*12mm,
12*25mm,12*35mm |
|||||
| Energy density | 1-72J/cm² | 1-45J/cm² | |||||
| Pulse Width | 10-200ms,10-150ms | ||||||
| Repetition rate | 1-15Hz | ||||||
| Spphire cooling | -4~4℃ | ||||||
| Operate interface | 15.6" /18.5'' True color touch screen | ||||||
| Cooling system | TEC cooling system or compressor cooling system | ||||||
| Power supply | AC 120-240V,50/60Hz | ||||||
| Dimension | 42*50*110cm(L*W*H) | ||||||
| Weight | 58.5Kgs | ||||||
