8 in 1 Laser System
Specification
| Handpiece | 1064/532nm EO Q-switch ND:YAG Laser,585/650nm(optional) |
| Operate mode | Q-switched mode,SPT mode |
| Beam profile | Flat-top mode |
| Pulse width | ≤6ns(Q-switched mode),300us(SPT mode) |
| Pulse energy | Q-switched(1064nm),Q-switched(532nm),SPT mode(1064nm) |
| Max.1200mJ, Max.500mJ, Max.1400mJ | |
| Repetition rate | Max.10Hz |
| Spot size | 2-10mm |
| Energy calibration | External & self-restoration |
| Handpiece | 1064/532nm Q-switch ND:YAG Laser |
| Max.Energy | 2400mJ(1064nm),1200mJ(532nm) |
| Pulse width | ＜10ns(single pulse) |
| Spot size | 1-5mm |
| Repetition rate | 1-10Hz |
| Power | 1000W |
| Handpiece | 1550/1927nm Fiber Laser |
| Laser power | 15W+15w |
| Laser output | 1-120mJ/dot(1550mm),1-100mJ/dot(1927nm) |
| Pulse width | 1-20ms(1550mm),0.4-10ms(1927nm) |
| Density | 9-225PPA/cm²(13 level) |
| Scan area | Max.20*20mm |
| Opere mode | Array,Random |
| Handpiece | 2940nm Er:YAG fractional ablative laser(Microbeam) |
| Spot size | 10*10mm,Φ6mm, Φ9mm,Φ1~3.5mm |
| Energy | 12~40mJ/microbeam(7x7 pixel ),6~24mJ/microbeam(9x9 pixel),
500~2000mJ(Beam expander,Zoom lens) |
| Pluse width | 200us, 300us, 500us, 1ms, 2ms |
| Handpiece | 1540nm Er:Glass fractional laser (Microbeam) |
| Energy | 30~70mJ/microbeam(10x10 pixel),5~25mJ/microbeam(18x18 pixel) |
| Pluse Width | 10ms,15ms |
| Handpiece | 1064nm Long Pulse Nd:YAG Laser |
| Energy density | 10~110J/cm² (Φ9mm),60~260J/cm² (Φ6mm),
150~500J/cm² (2.2*5mm) |
| Pulse width | 10~40ms |
| Repetition rate | 0.5~1Hz |
| Handpiece | Diode laser (810+755+1064nm) |
| Laser output | 1600W |
| Spot size | 12x14mm ,12x30mm, Φ6mm |
| Energy density | 1~72J/cm² |
| Pulse width | 10~200ms |
| Repetition rate | 1~15Hz |
| Handpiece | IPL |
| Spot size | 15*50mm |
| Wavelength | 420~1200nm |
| Filter | 420/510/560/610/640~1200nm, SHR filter |
| Energy | 10~60 level |
| Operate interface | 15.6'' True color touch screen |

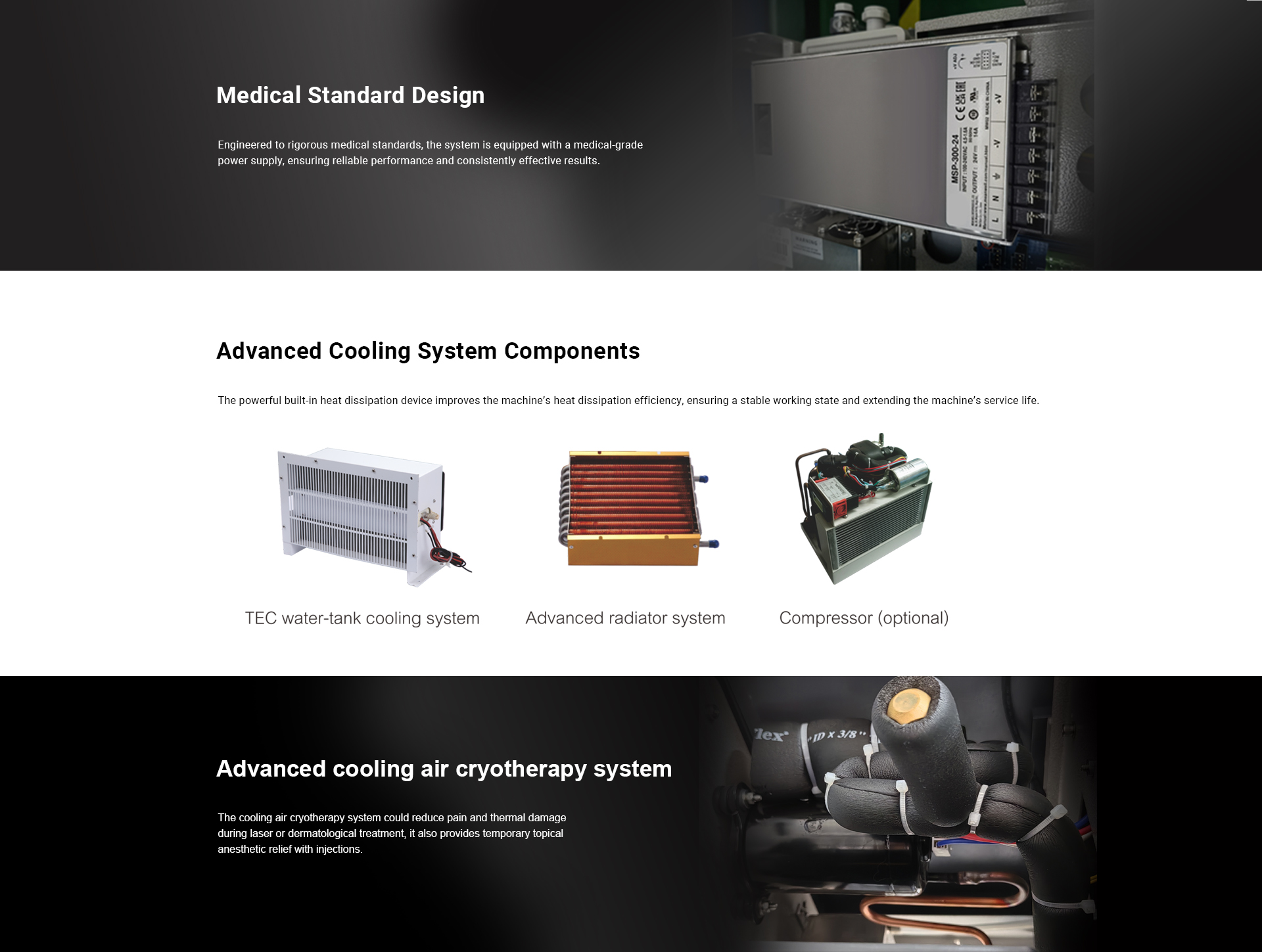

| Cooling | Air & TEC water cooling or compressor cooling system |
| Power supply | AC 110V or 230V, 50/60Hz |
| Dimension | 91.8*45.5*193cm (L*W*H) |
| Weight | 130Kgs |
Application
1550/1927nm Fiber Laser
Skin rejuvenation, Skin resurfacing, Wrinkle reduction, Skin toning and tightening, Stretch mark improvement, Acne scar correction, Stimulated hair growth.
1064/532nm EO Q-S Nd:YAG Laser (Microbeam)
Precise ablation of skin tissue, stimulate collagen regeneration and skin resurfacing.
Microlens tip: 7x7pixel, 10x10 pixel, Collimating lens, Array lens.
Long pulse lens.
1064nm Long Pulse Nd:YAG Laser
Permanent Hair Removal for all skin types, leg Veins and telangiectasi, Vascular lesion, wrinkle Removal
2940nm Er:YAG Fractional Laser (Microbeam)
Precise ablation of skin tissue, stimulate collagen regeneration and skin resurfacing.
Microlens tip: 7x7pixel, 9x9 pixel, Beam expander tip: φ6mm, φ9mm. Zoom lens tip:φ1~3.5mm
1540nm Er:Glass Fractional Laser (Microbeam)
Penetrates the dermis to stimulate collagen regeneration, achieve skin lifting, wrinkle removing and rejuvenating.
Microlens tip: 10x10 pixel, 18x18 pixel
1064/532nm Q-Switched Nd:YAG Laser
For unwanted tattoos, pigmented lesions (brown spots, age spots, etc.), vascular lesions, spider veins, toenail fungus, non-ablative skin rejuvenation(carbon peeling)
Diode laser
Permanent hair removal, Whole body and facial skin rejuvenation. Laser output: 1600W. Spot size: 12x20mm, 12x14mm/12x30mm
IPL
Skin care and rejuvenation, permanent hair removal, vascular treatment, dispel epidermal pigmentation, spots and freckles, acne removal, skin lifting and firming.
